Mains Powered Display Turntable With Slip Rings (CSWD100SR) 10kg Load Capacity
$352.80 inc VAT
$352.80 inc VAT
Key Features of the CSWD100SR

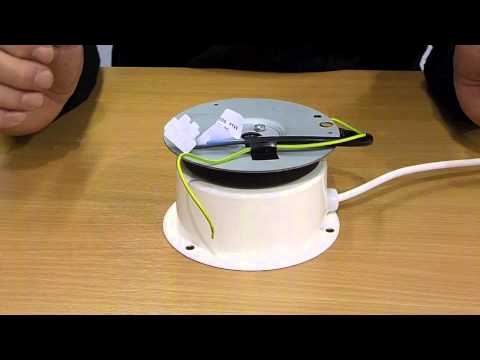

The CSWD100SR is a mains-powered turntable base unit equipped with slip rings, allowing power supply to the display item above. This turntable is designed for dynamic showcasing and can support up to 10kg based on a flat concentric load. Its standard rotation speed of 2.5 times per minute clockwise ensures that your display items are constantly in motion, capturing attention and enhancing the overall presentation.
This unit is also available with a speed of 1 RPM; select the appropriate model. Please note for this speed, a 14-day turnaround is to be expected.
Specifications and Details
Dimensions and Rotation:
The CSWD100SR features a 124mm diameter turning plate, complemented by a 130mm base and a height of 75mm. Its efficient design ensures a consistent rotation, with a power consumption of just 10w. The slip ring outlet supplies 4A, providing a reliable power source for your display items.
Power and Safety:
This turntable is designed for safety and compliance with EC regulations. It's equipped with safety clutches to prevent any mishaps. It's essential to note that display turntables, including the CSWD100SR, should not be rotated manually, as this can damage the gears, especially if placed in a public area.
Important Considerations for Optimal Use

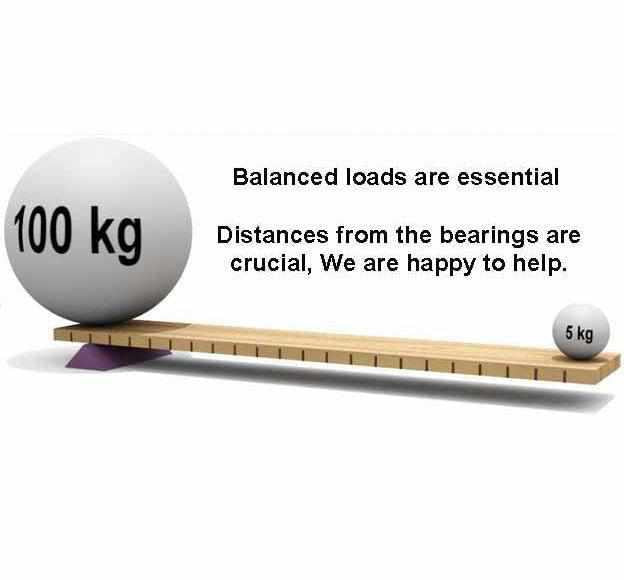

While the turntable is rated for up to 10kg, the size and balance of your display can significantly affect the torque on the turntable bearing. This might necessitate a turntable with a larger weight capacity for specific applications. It's crucial to maintain a central and balanced load. Counterweights might be required to ensure balance. We recommend purchasing a sample to test your specific revolving display before placing a bulk order.
Expert Advice and Support
At Coker Exhibition Systems, we're dedicated to ensuring you choose the right turntable for your needs. If you have any queries about the CSWD100SR or need guidance on setup and operation, don't hesitate to call us on 01256 768178. Our team is always ready to provide expert advice and support, helping you maximise the impact of your displays.
